ZC YJV Standard Copper Low Voltage Engineering Cable
ZC YJV Standard Copper Low Voltage Engineering Cable

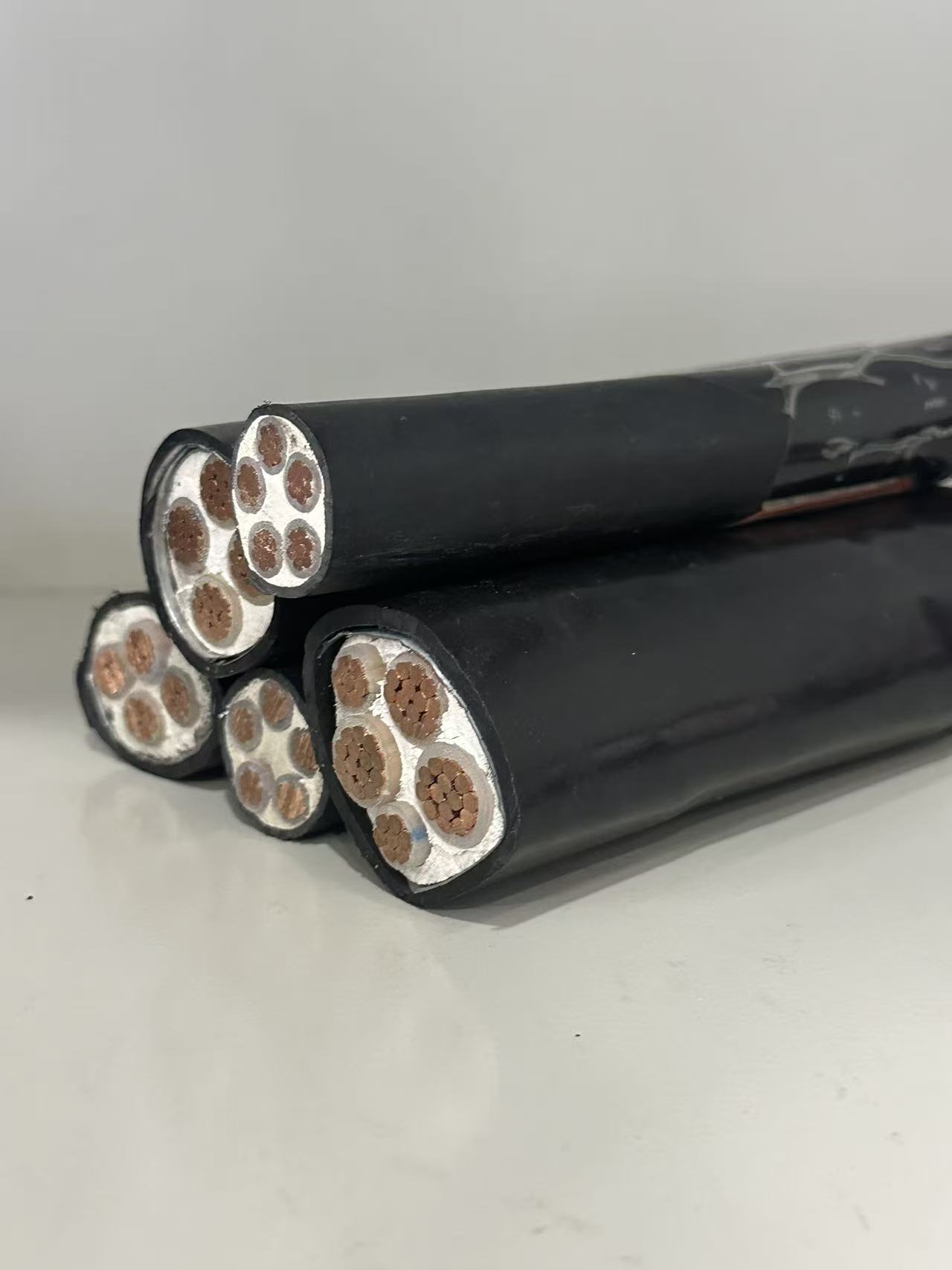

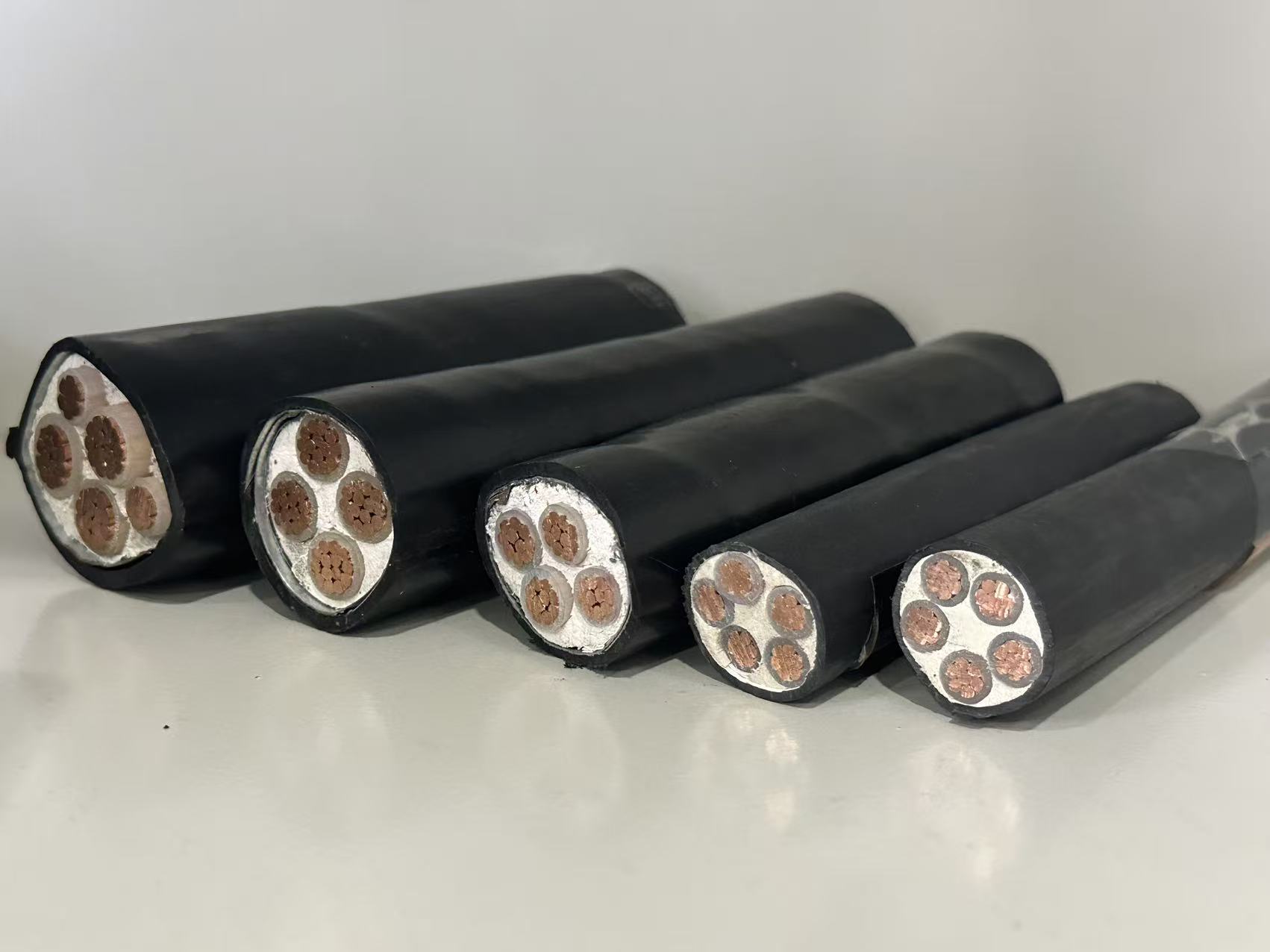

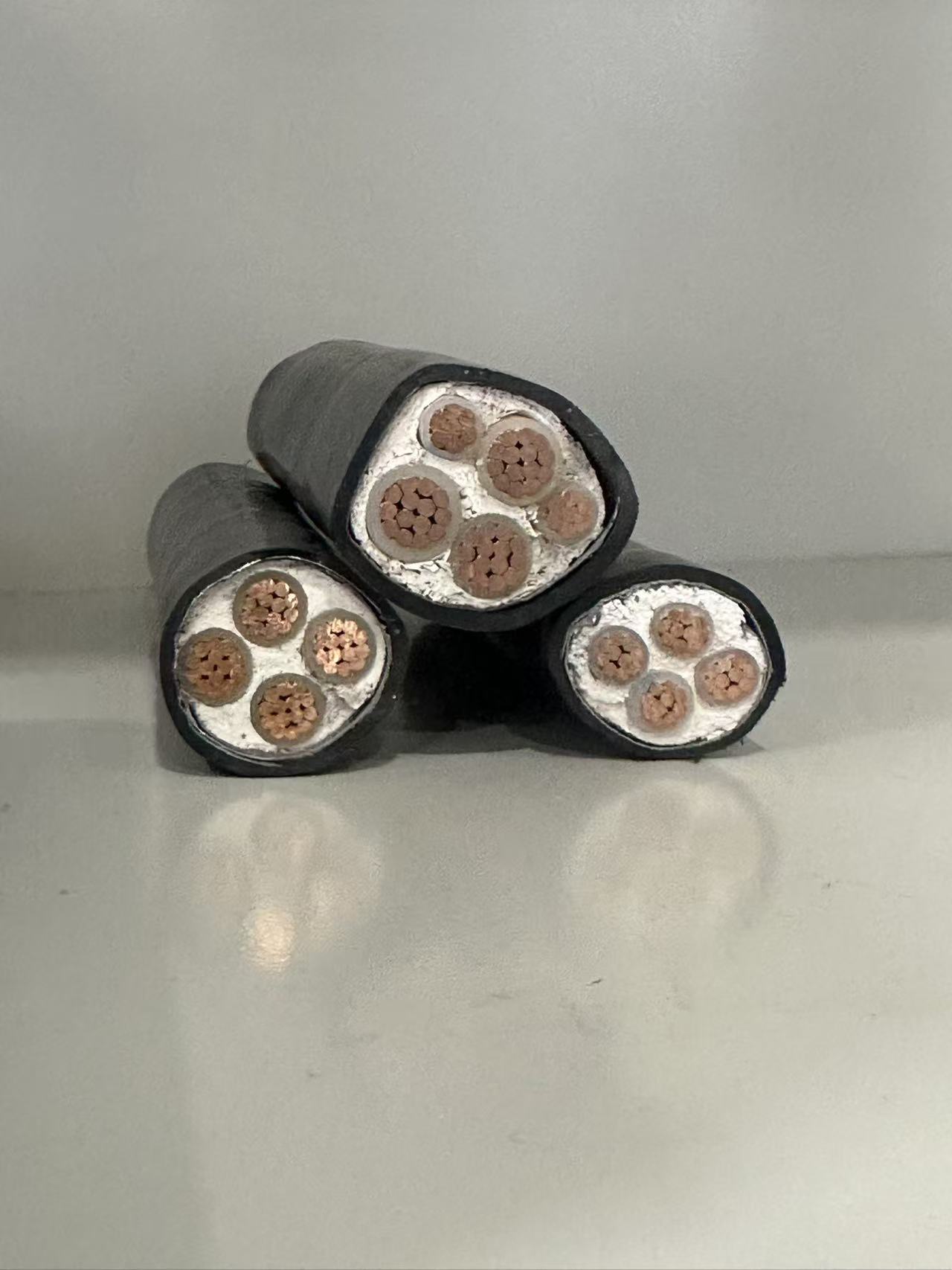

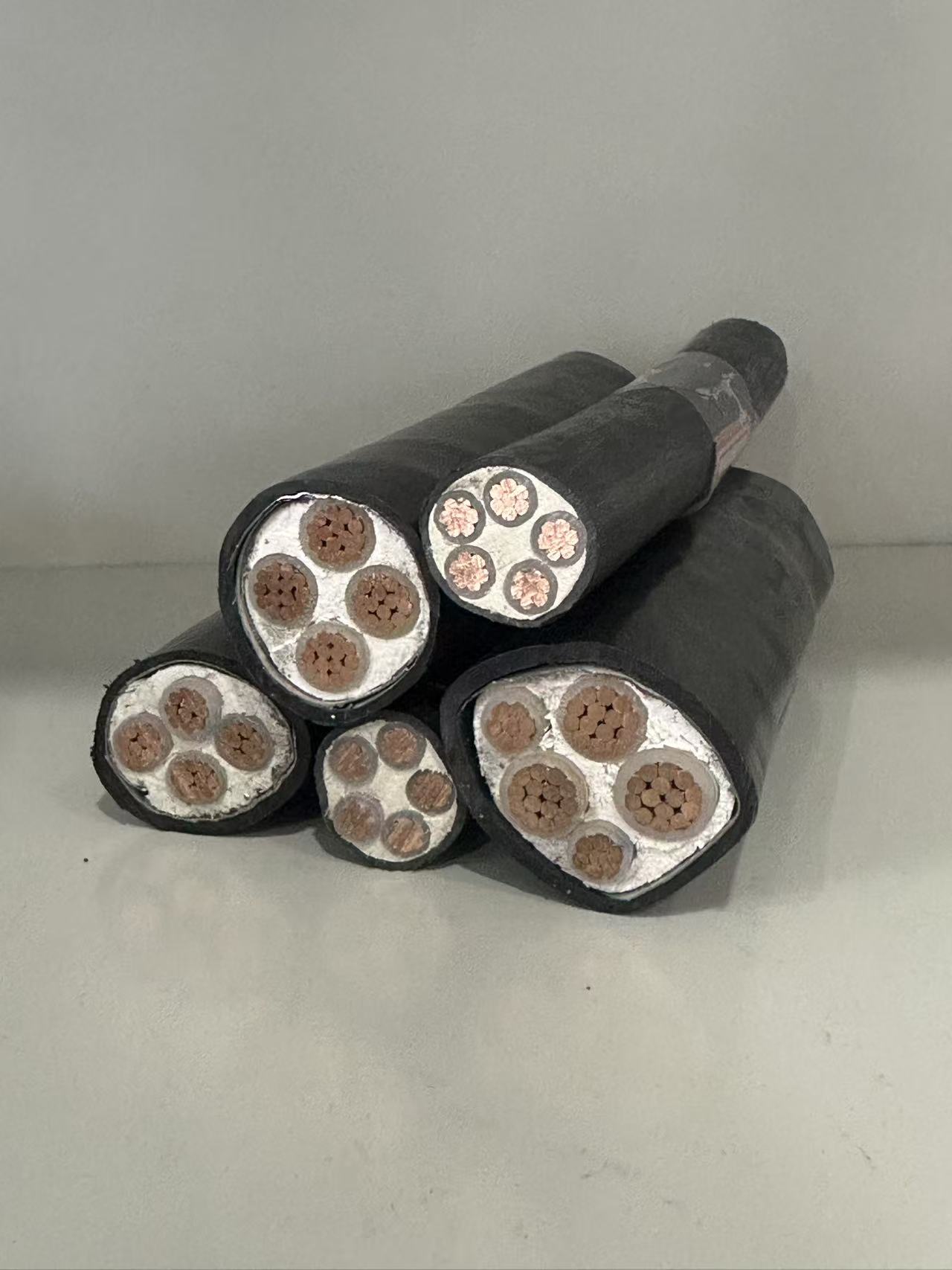

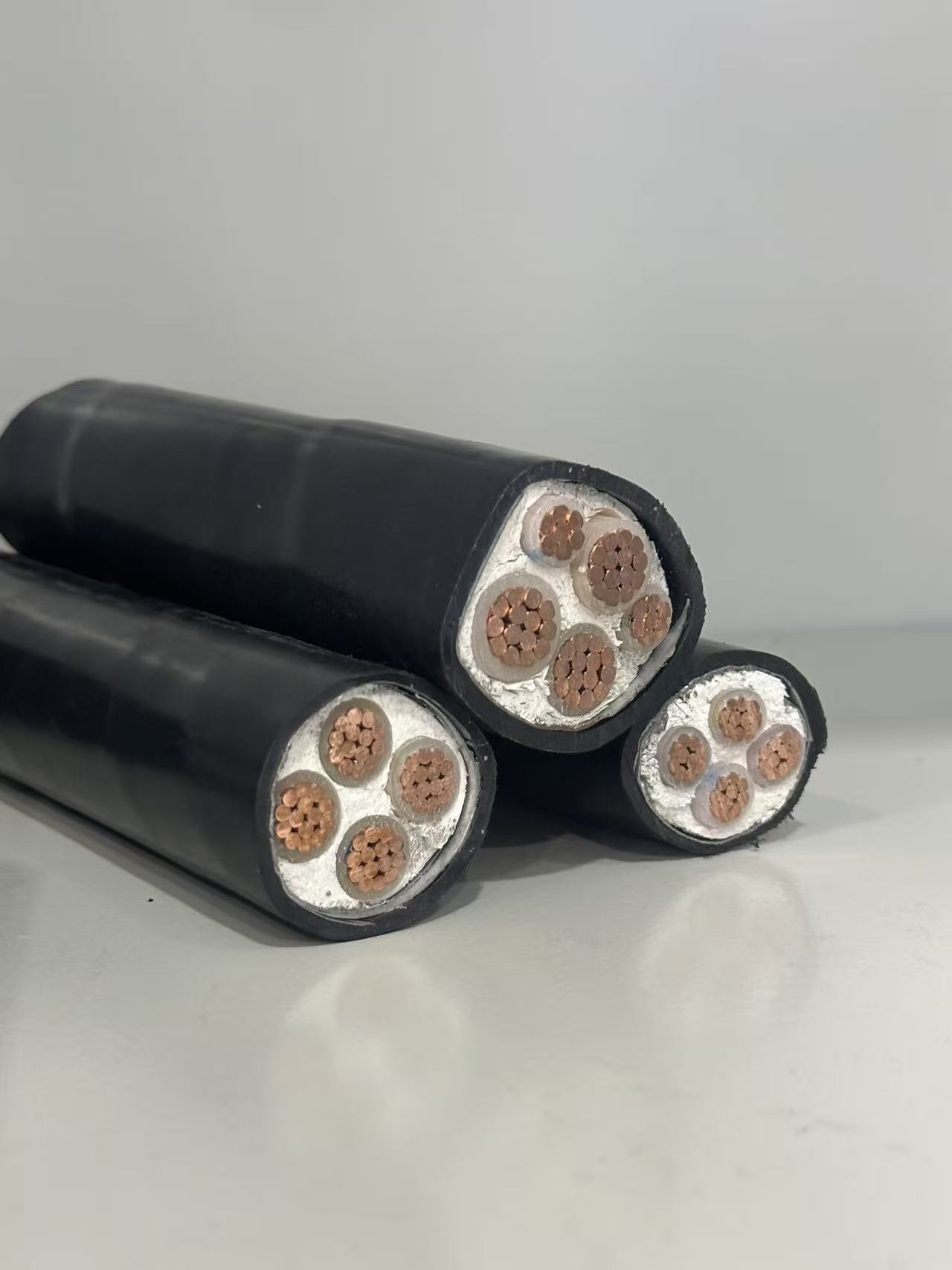

ZC YJV national standard copper power cable with 1-5 cores 10-50mm², flame retardant low voltage cable for engineering construction.
ZC YJV flame retardant power cable complies with national standards, made of high-purity copper core, PVC insulation and outer jacket. Available in 1 to 5 cores with cross sections from 10 to 50 square millimeters.
The ZC flame retardant structure effectively blocks flame propagation to improve construction safety. Copper conductor ensures stable power transmission and low energy consumption. The PVC jacket resists daily dampness and abrasion, fit for indoor duct and concealed laying in all kinds of engineering projects.
Product Advantages
National standard production with stable product performance.
ZC grade flame retardant reduces fire hazard during usage.
Complete core and size range meets diverse engineering load demands.
Wear-resistant PVC outer layer extends cable service life.
Cost-effective and easy for construction installation.
Application Scenarios
Commercial building and residential community power distribution engineering.
Factory workshop low voltage power wiring.
Public infrastructure and renovation construction projects.
Conduit embedding, cable shaft fixed laying works.
Quality & Service Support
Each batch of cables undergoes strict voltage resistance and flame retardant testing before delivery. Factory direct bulk supply with full technical specifications provided.https://yidongjiaolian.com
| Item | Specification |
|---|---|
| Model | ZC-YJV (Non-armored) / ZC-YJV22 (Steel Tape Armored) / ZB-YJV / ZA-YJV |
| Conductor | Class 2 Stranded 99.99% Oxygen-free Pure Copper |
| Core Number | 1/2/3/3+1/3+2/4/4+1/5 Core |
| Cross Section | 1.5–630mm² |
| Rated Voltage | 0.6/1kV, 8.7/10kV |
| Insulation | XLPE Cross-linked Polyethylene |
| Outer Sheath | Class C Flame Retardant PVC |
| Long-term Working Temp | -40℃ ~ 90℃ |
| Short-circuit Max Temp | 250℃ (≤5s) |
| Min Bending Radius | Single core ≥20D; Multi-core ≥15D |
| Flame Retardant Grade | Class C (ZC Standard) |
| Executive Standard | GB/T12706.1-2020, GB/T19666-2019, IEC60332-3 |
| Application | Residential, Factory, Commercial Building General Flame Resistant Power Wiring |
| Certificate | ISO9001, CCC, CE, RoHS |
| Service Life | 30+ Years |
