PV1-F Tinned Copper XLPE Insulated Solar Cable For Outdoor Photovoltaic Power Station Factory Direct
PV1-F Tinned Copper XLPE Insulated Solar Cable For Outdoor Photovoltaic Power Station Factory Direct

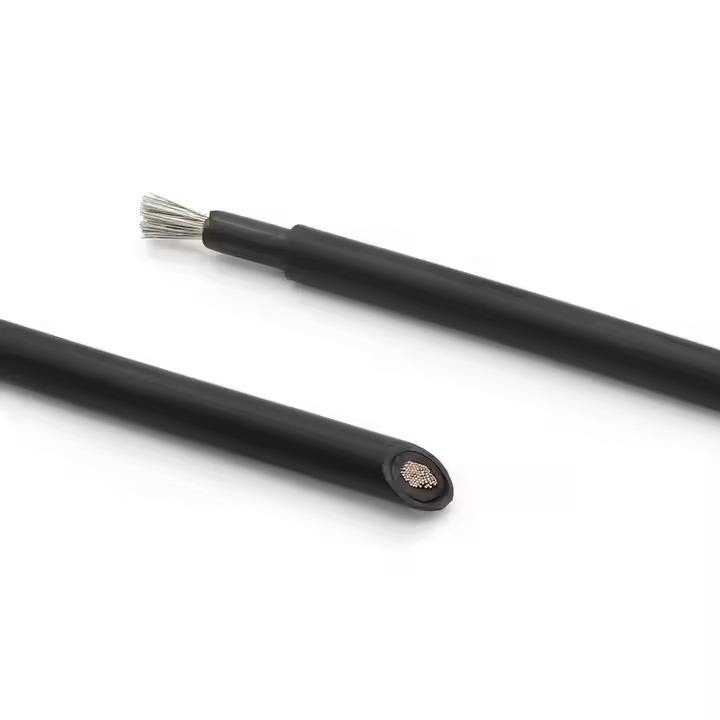

PV1-F solar cable adopts tinned copper conductor and double XLPE insulation, professional wire for outdoor photovoltaic system wiring.
PV1-F solar cable is a professional dedicated wire for photovoltaic power systems. It adopts high-purity tinned stranded copper conductor. The tinned copper material effectively resists oxidation. It maintains stable and efficient current transmission in long-term outdoor environments.
This solar cable is equipped with double-layer XLPE insulation and protective sheath. It features outstanding UV resistance, ozone resistance and high temperature resistance. The cable can adapt to all-weather outdoor conditions. It resists damage from long-term sun exposure, wind, rain and snow erosion.
The cable has excellent flexibility and superior anti-aging performance. It effectively avoids cracking, aging and electric leakage after long-time outdoor use. We provide complete standard specifications. It is widely used to connect solar panels, junction boxes and inverters for all kinds of photovoltaic power projects.
Product Advantages
Tinned copper core prevents oxidation and ensures stable power transmission.
Double XLPE insulation delivers strong UV and weather resistance.
High temperature resistant and anti-aging for long outdoor service life.
Excellent flexibility, easy wiring and installation on roofs and brackets.
Flame retardant and safe, suitable for various harsh outdoor environments.
Application Scenarios
Rooftop residential and commercial solar power systems
Large ground photovoltaic power station wiring
Connection between solar panels, junction boxes and inverters
Outdoor low-voltage photovoltaic power transmission circuits
Quality & Service Support
All PV1-F solar cables pass strict UV aging, high temperature resistance and insulation tests before delivery. Factory direct wholesale with full specifications and fast delivery.https://yidongjiaolian.com
| Item | Specification |
|---|---|
| Model | H1Z2Z2-K / PV1-F / ZC-PV1-F Flame Retardant |
| Conductor | Class 5 Multi-strand Tinned Oxygen-free Pure Copper |
| Core Number | 1-core Single Core |
| Cross Section | 1.5–35mm² |
| Rated Voltage | AC 1000V, DC 1500V, Max DC 1800V |
| Insulation & Sheath Material | Double Layer XLPO Radiation Cross-linked Halogen Free Polyolefin |
| Long-term Working Temp | -40℃ ~ 90℃ |
| Short-time Tolerance Temp | 120℃ Continuous |
| Short-circuit Max Temp | 250℃ (≤5s) |
| Min Bending Radius | Static ≥4D; Dynamic Tracker ≥10D |
| Executive Standard | EN50618:2014, IEC62930, GB/T33765-2017 |
| Application | Rooftop PV, Ground Solar Farm, Combiner Box & Inverter DC Connection |
| Service Life | 25+ Years |
